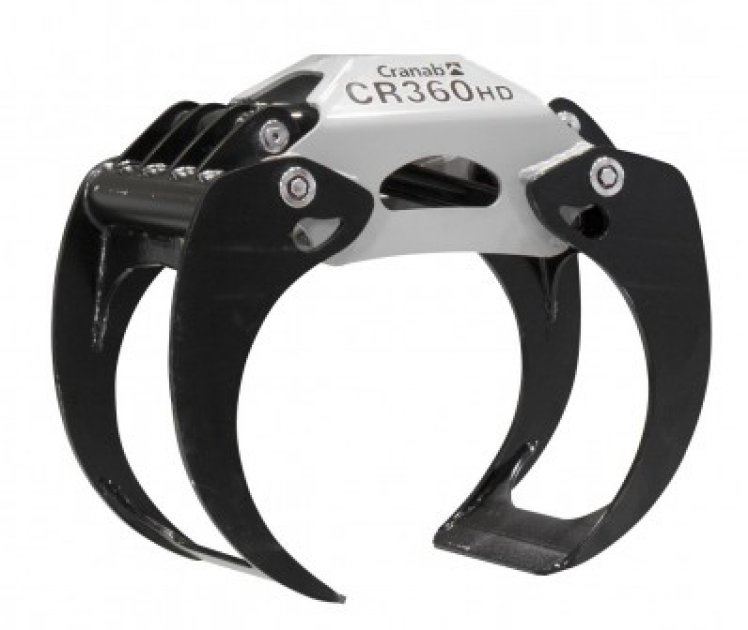

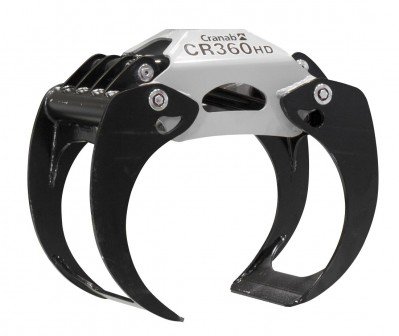

CR360HD
Category: CR HD Grapples
| Max. working pressure | 235 Bar |
| Weight | 340 Kg |
| DIMENSIONS |
|
| Area - tip to tip | 0,33 m² |
| Max. gripping width | 1816 mm |
| Min. gripping diameter | 124 mm |
| Grapple width | 576 mm |
| Height - max. gripping width | 802 mm |
| Height - tip to tip | 975 mm |
| POWER AT TIP |
|
| Max. gripping width | 1440 Kp |
| Min. gripping width | 1590 Kp |
| Max. load | 7000 Kg |
| Expander pins | Yes |
