Truck cranes

For timber haulage and recycling

Cranab truck cranes have been developed for both transport and material handling. The cranes can easily handle everything from timber and scrap to large containers.


Download PDF


The cranes have been specially produced for trucks and consist of modern, tried-and-tested technologies and world-class hydraulics. In our development work we have focused on the operator, contractors and the environment. We have put great emphasis into the industry-leading key qualities of performance, high productivity and sustainability.

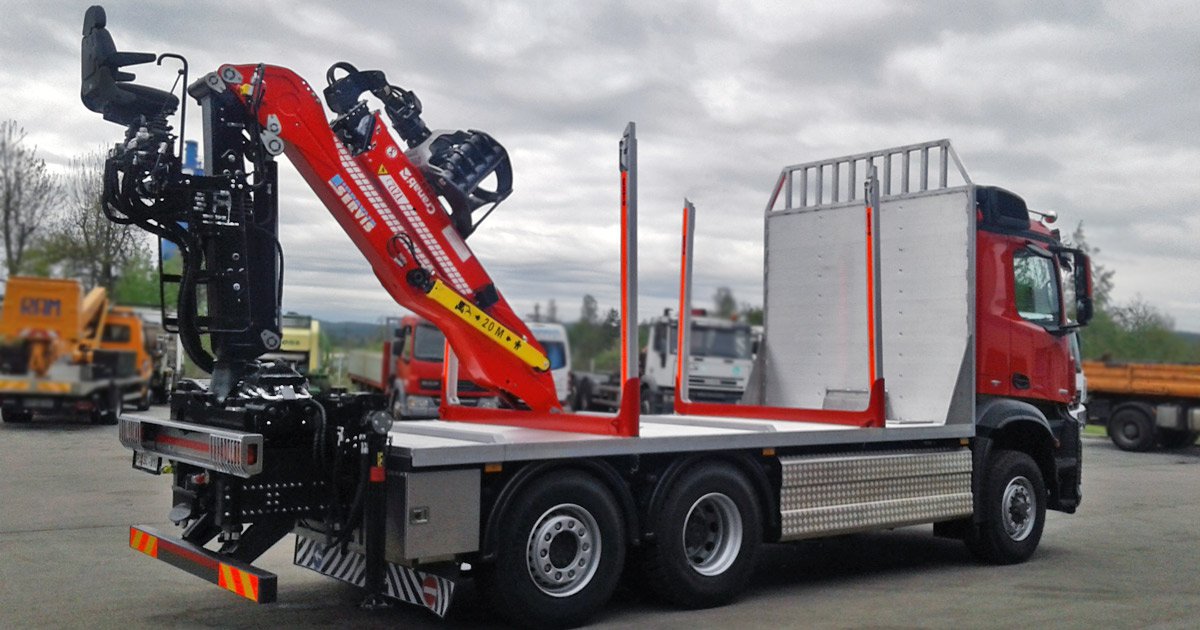

Cranab's L-formed truck crane always puts you one step ahead: It is powerful, versatile and flexible, service-friendly and safe. The L-crane always comes fitted with a torque linkage, which makes it extra powerful and dependable, especially in heavy lifting scenarios.

{loadposition download-pdf-truck-crane-general}



Available version:

Max. standard reach 8,3 - 10 m
Max. lifting capacity 106,4 - 115 kNm
Max. hydraulic extension 3,1 - 3,7 m

The cranes have been specially produced for trucks and consist of modern, tried-and-tested technologies and world-class hydraulics. In our development work we have focused on the operator, contractors and the environment. We have put great emphasis into the industry-leading key properties of performance, high productivity and sustainability.

With Cranab's Z-crane you will achieve high productivity from the outset. The crane extends quickly and enables efficient production using extensively tested hydraulics and leading operating properties. Thanks to its compact design and the Z-crane's unique parking position the operator is able to take a maximum load every time.

{loadposition download-pdf-truck-crane-general}



Available versions:

Max. standard reach 7,7 - 10,5 m
Max. lifting capacity 99,7 - 111,0 kNm
Max. hydraulic extension 1,97 - 3,9 m

The cranes are specially designed for trucks and consist of modern, proven technology and world-class hydraulics. In our development work, we have focused on drivers, contractors and the environment. We have placed the highest emphasis on class-leading handling, performance, high productivity and durability.

With Cranab's Z-crane you will be productive right from the start. The crane is quickly deployable and provides efficient production with carefully tested hydraulics and leading driving characteristics. Thanks to the compact solution and the Z-crane's unique parking position, you can load to the maximum every time.
The TZ13 is available in two different versions from 8.5 to 10.5 metres reach.

{loadposition download-pdf-truck-crane-general}



Available versions:

Max. standard reach 8,5 - 10,5 m
Max. lifting capacity 112 - 117 kNm
Max. hydraulic extension 2,05 - 4 m

The cranes have been specially produced for trucks and consist of modern, tried-and-tested technologies and world-class hydraulics. In our development work we have focused on the operator, contractors and the environment. We have put great emphasis into the industry-leading key properties of performance, high productivity and sustainability.

With Cranab's Z-crane you will achieve high productivity from the outset. The crane extends quickly and enables efficient production using extensively tested hydraulics and leading operating properties. Thanks to its compact design and the Z-crane's unique parking position the operator is able to take a maximum load every time.

{loadposition download-pdf-truck-crane-general}



Available versions:

Max. standard reach 10,2 m
Max. lifting capacity 170,0 kNm
Max. hydraulic extension 3,7 m

With Cranab's RZ cranes, every operator quickly becomes productive right from the start.

The RZ12 is available in four versions from 7.7 metres to 10.5 metres and covers the needs of most users. If even more power and strength is required, there is the strong giant RZ18.

{loadposition download-pdf-truck-crane-general}




Available versions:

Max. standard reach 7,7m - 10,5 m
Max. lifting capacity 99,7 kNm - 110,5 kNm
Max. hydraulic extension 1,97 m - 3,9 m

With Cranab's RZ cranes, every operator quickly becomes productive right from the start.

The RZ13 is available in four versions from 8.5 metres to 10.5 metres and covers the needs of most users. If even more power and strength is required, there is the strong giant RZ18.

{loadposition download-pdf-truck-crane-general}




Available versions:

Max. standard reach 8,5 m - 10,5 m
Max. lifting capacity 112 kNm - 122 kNm
Max. hydraulic extension 2,05 m - 4,16 m

With Cranab's RZ cranes, every operator quickly becomes productive right from the start.

The RZ18 is available in four versions from 8.3 metres to 10.15 metres and covers the needs of most users.

{loadposition download-pdf-truck-crane-general}




Available versions:

Max. standard reach 10,2 m
Max. lifting capacity 171,0 kNm
Max. hydraulic extension 3,7 m
Category: TL12

Telescopic version2
Standard reach10,0 m
Lifting capacity106,4 kNm
Hydraulic extension3,1 m
Angle rotation425°
Rotation torque29,3 kNm
Working pressure26 Mpa
Pump capacity120 - 160 l/min
Crane weight2535 kg

Sectors
  • Forestry
  • Recycling
On road / Off roadOn road
Category: TL12

Telescopic version1
Standard reach8,3 m
Lifting capacity115,00 kNm
Hydraulic extension1,57 m
Angle rotation425°
Rotation torque29,3 kNm
Working pressure26 Mpa
Pump capacity120 - 160 l/min
Crane weight2415 kg

Category: TZ12

Telescopic version1
Standard reach8,3 m
Lifting capacity108,0 kNm
Hydraulic extension1,97 m
Angle rotation425°
Rotation torque29,3 kNm
Working pressure26 Mpa
Pump capacity120 - 160 l/min
Crane weight2425 kg

Category: TZ12

Telescopic version2
Standard reach9,3 m
Lifting capacity102,8 kNm
Hydraulic extension3,1 m
Angle rotation425°
Rotation torque29,3 kNm
Working pressure26 Mpa
Pump capacity120 - 160 l/min
Crane weight2475 kg

Category: TZ12

Telescopic version2
Standard reach10,5 m
Lifting capacity99,7 kNm
Hydraulic extension3,9 m
Angle rotation425°
Rotation torque29,3 kNm
Working pressure26 Mpa
Pump capacity120 - 160 l/min
Crane weight2515 kg

Category: TZ12

Telescopic version2
Standard reach7,7 m
Lifting capacity111,0 kNm
Hydraulic extension2,53 m
Angle rotation425°
Rotation torque29,3 kNm
Working pressure26 Mpa
Pump capacity120 - 160 l/min
Crane weight2200 kg

Category: TZ13

Telescopic version1
Standard reach8,5 m
Lifting capacity117,00 kNm
Hydraulic extension2,05 m
Angle rotation425°
Rotation torque29,3 kNm
Working pressure26 Mpa
Pump capacity120 - 160 l/min
Crane weight2380 kg

Category: TZ13

Telescopic version2
Standard reach10,5 m
Lifting capacity112,00 kNm
Hydraulic extension4,0 m
Angle rotation425°
Rotation torque29,3 kNm
Working pressure26 Mpa
Pump capacity120 - 160 l/min
Crane weight2450 kg

Category: TZ18

Telescopic version2
Standard reach10,2 m
Lifting capacity170,00 kNm
Hydraulic extension3,7 m
Angle rotation425°
Rotation torque29,3 kNm
Working pressure26 Mpa
Pump capacity120 - 160 l/min
Crane weight3050 kg

Category: RZ12

Telescopic version2
Standard reach7,7 m
Lifting capacity110,5 kNm
Hydraulic extension2,53 m
Angle rotation425°
Rotation torque29,3 kNm
Working pressure26 Mpa
Pump capacity120 - 160 l/min
Crane weight2450 kg

Category: RZ12

Telescopic version1
Standard reach8,3 m
Lifting capacity108,0 kNm
Hydraulic extension1,97 m
Angle rotation425°
Rotation torque29,3 kNm
Working pressure26 Mpa
Pump capacity120 - 160 l/min
Crane weight2425 kg

Category: RZ12

Telescopic version2
Standard reach9,3 m
Lifting capacity102,8 kNm
Hydraulic extension3,1 m
Angle rotation425°
Rotation torque29,3 kNm
Working pressure26 Mpa
Pump capacity120 - 160 l/min
Crane weight2475 kg

Category: RZ12

Telescopic version2
Standard reach10,5 m
Lifting capacity99,7 kNm
Hydraulic extension3,9 m
Angle rotation425°
Rotation torque29,3 kNm
Working pressure26 Mpa
Pump capacity120 - 160 l/min
Crane weight2515 kg

Category: RZ13

Telescopic version1
Standard reach8,5 m
Lifting capacity117,00 kNm
Hydraulic extension2,05 m
Angle rotation425°
Rotation torque29,3 kNm
Working pressure26 Mpa
Pump capacity120 - 160 l/min
Crane weight2380 kg

Category: RZ13

Telescopic version2
Standard reach10,5 m
Lifting capacity112,00 kNm
Hydraulic extension4,0 m
Angle rotation425°
Rotation torque29,3 kNm
Working pressure26 Mpa
Pump capacity120 - 160 l/min
Crane weight2450 kg

Category: RZ13

Telescopic version1
Standard reach8,5 m
Lifting capacity122,00 kNm
Hydraulic extension2,58 m
Angle rotation425°
Rotation torque29,3 kNm
Working pressure27 Mpa
Pump capacity120 - 160 l/min
Crane weight2490 kg

Category: RZ13

Telescopic version1
Standard reach9,5 m
Lifting capacity118,00 kNm
Hydraulic extension4,16 m
Angle rotation425°
Rotation torque29,3 kNm
Working pressure27 Mpa
Pump capacity120 - 160 l/min
Crane weight2570 kg

Category: RZ18

Telescopic version1
Standard reach8,3 m
Lifting capacity182,00 kNm
Hydraulic extension1,85 m
Angle rotation425°
Rotation torque29,3 kNm
Working pressure26 Mpa
Pump capacity120 - 160 l/min
Crane weight2910 kg

Category: RZ18

Telescopic version2
Standard reach8,3 m
Lifting capacity172,00 kNm
Hydraulic extension1,85 m
Angle rotation425°
Rotation torque29,3 kNm
Working pressure26 Mpa
Pump capacity120 - 160 l/min
Crane weight2850 kg

Category: RZ18

Telescopic version2
Standard reach10,15 m
Lifting capacity171,00 kNm
Hydraulic extension3,7 m
Angle rotation425°
Rotation torque29,3 kNm
Working pressure26 Mpa
Pump capacity120 - 160 l/min
Crane weight3000 kg
