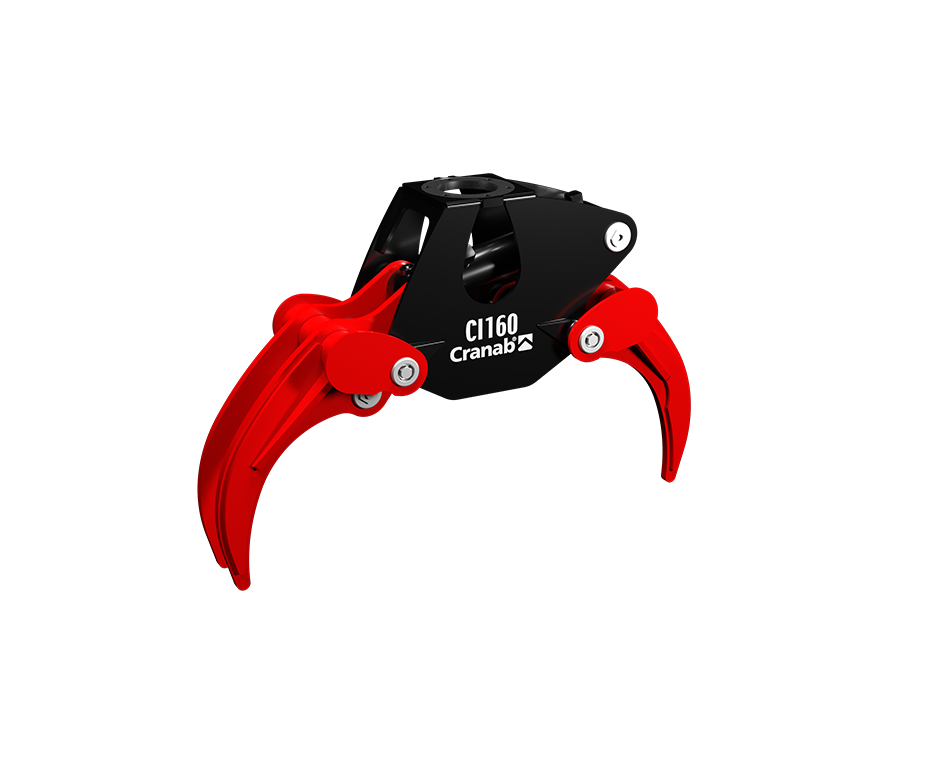

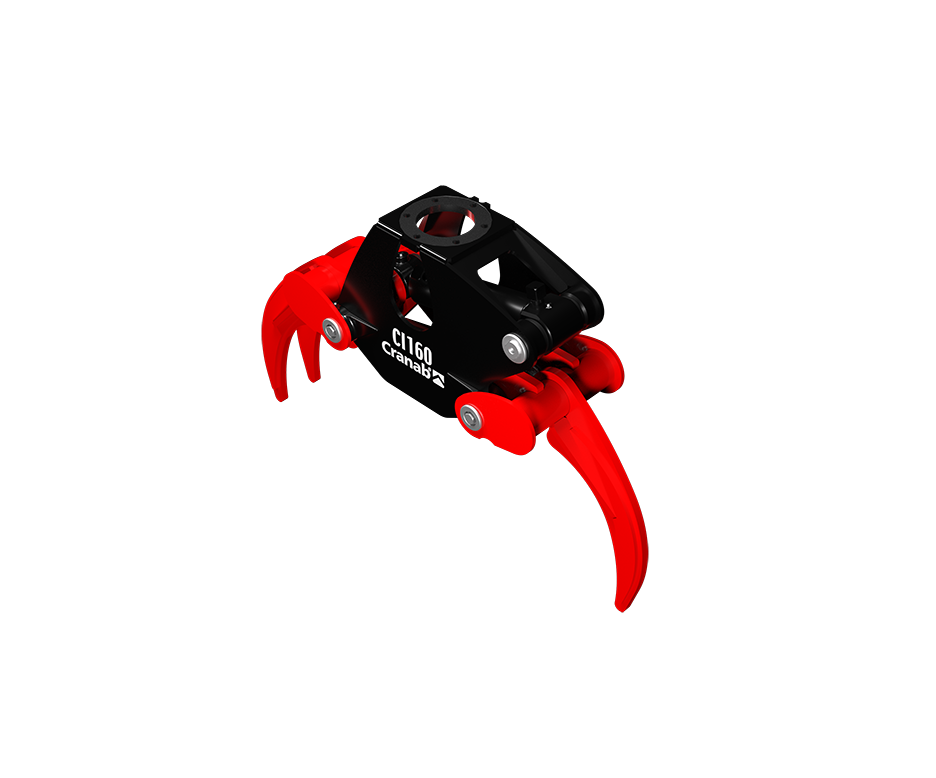

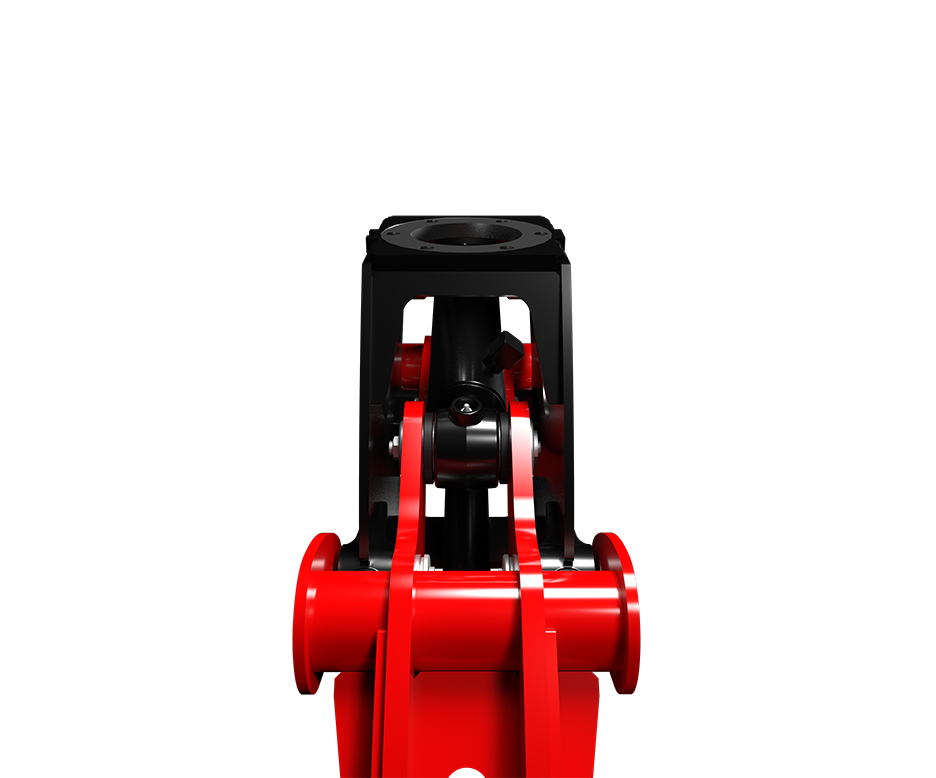

Single-Log Grapples

For single-log handling

The CI grapple is available in one size and is specially adapted for precision work. The grapple is designed to easily pick one log at a time. It’s especially suitable for stationary crane work at sawmills, terminals or industrial applications.

Technical specifications:

CI160
Max. working pressure
23,5 MPa
Weight
180 Kg
Dimensions
Area - tip to tip
0,14 m²
Max. gripping width
1098 mm
Min. gripping diameter
44 mm
Grapple width
320 mm
Height - max. gripping width
791 mm
Height - tip to tip
867 mm
POWER AT TIP
Max. gripping width
11,7 kN
Min. gripping width
15,7 kN
Max. load
3500 Kg
Expander pins
Yes
