Round Wood Grapples

For round timber and logs

CR grapples are available in seven different sizes, for the smallest to the largest cranes. The grapples are designed for round timber handling. Roll-in characteristics are very good, as are gripping capacity and opening width.

Technical specifications:

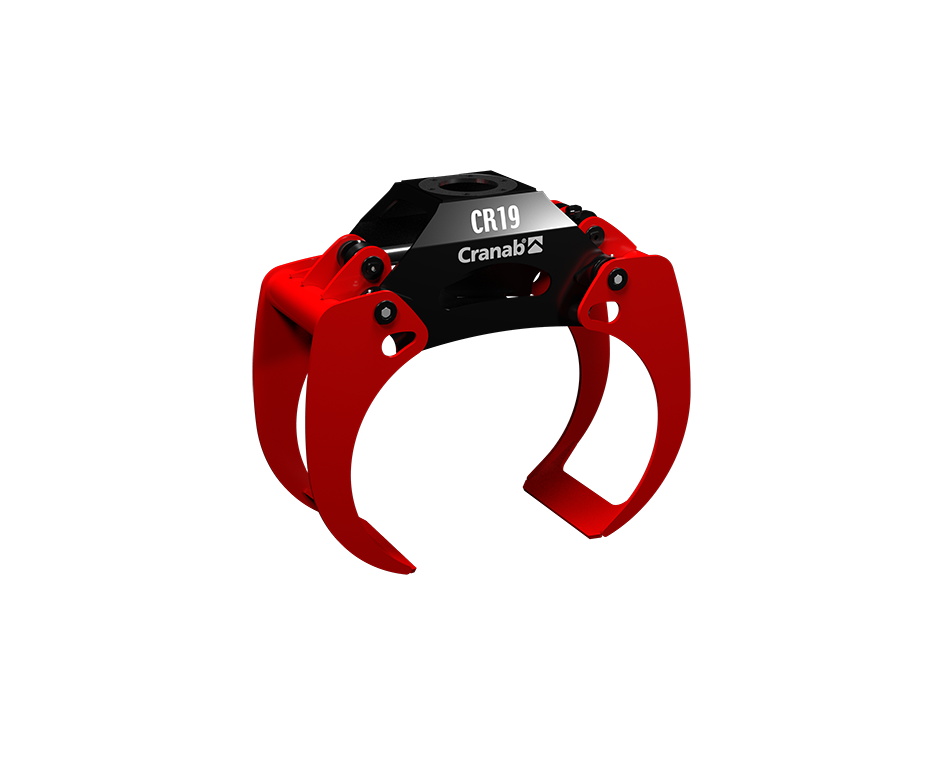

CR19
Max. working pressure
19 MPa
Weight
100 Kg
Dimensions
Area - tip to tip
0,19 m²
Max. gripping width
1290 mm
Min. gripping diameter
88 mm
Grapple width
362 mm
Height - max. gripping width
690 mm
Height - tip to tip
772 mm
POWER AT TIP
Max. gripping width
7,4 kN
Min. gripping width
9,1 kN
Max. load
2000 Kg
Expander pins
Yes
CR23
Max. working pressure
21 MPa
Weight
105 Kg
Dimensions
Area - tip to tip
0,22 m²
Max. gripping width
1443 mm
Min. gripping diameter
94 mm
Grapple width
362 mm
Height - max. gripping width
780 mm
Height - tip to tip
800 mm
POWER AT TIP
Max. gripping width
7,7 kN
Min. gripping width
9,8 kN
Max. load
2000 Kg
Expander pins
Yes
CR26
Max. working pressure
25 Mpa
Weight
190 Kg
Dimensions
Area - tip to tip
0,26 m²
Max. gripping width
1500 mm
Min. gripping diameter
94 mm
Grapple width
458 mm
Height - max. gripping width
793 mm
Height - tip to tip
893 mm
POWER AT TIP
Max. gripping width
12,4 kN
Min. gripping width
14,4 kN
Max. load
3500 Kg
Expander pins
Yes

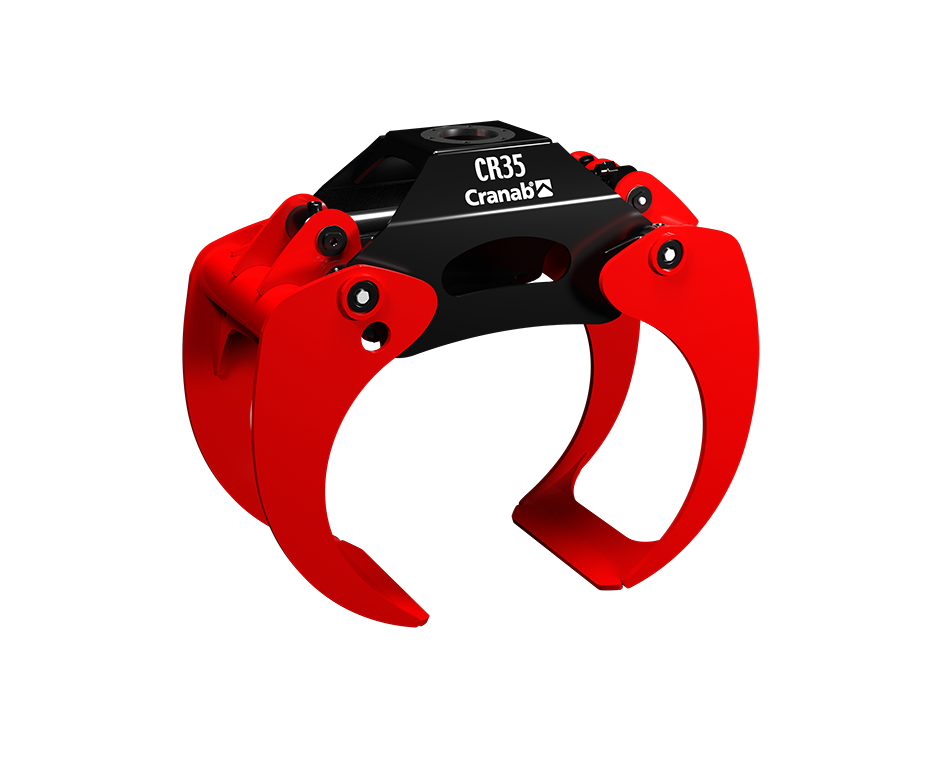

CR35
Max. working pressure
25 MPa
Weight
245 Kg
Dimensions
Area - tip to tip
0,32 m²
Max. gripping width
1818 mm
Min. gripping diameter
130 mm
Grapple width
503 mm
Height - max. gripping width
803 mm
Height - tip to tip
976 mm
POWER AT TIP
Max. gripping width
16,6 kN
Min. gripping width
18,5 kN
Max. load
4000 Kg
Expander pins
Yes
CR40
Max. working pressure
25 MPa
Weight
315 Kg
Dimensions
Area - tip to tip
0,40 m²
Max. gripping width
1976 mm
Min. gripping diameter
136 mm
Grapple width
539 mm
Height - max. gripping width
897 mm
Height - tip to tip
1073 mm
POWER AT TIP
Max. gripping width
16,2 kN
Min. gripping width
18,2 kN
Max. load
4000 Kg
Expander pins
Yes
CR45
Max. working pressure
25 MPa
Weight
330 Kg
Dimensions
Area - tip to tip
0,44 m²
Max. gripping width
1973 mm
Min. gripping diameter
110 mm
Grapple width
535 mm
Height - max. gripping width
966 mm
Height - tip to tip
1130 mm
POWER AT TIP
Max. gripping width
16,1 kN
Min. gripping width
18,2 kN
Max. load
4000 Kg
Expander pins
Yes

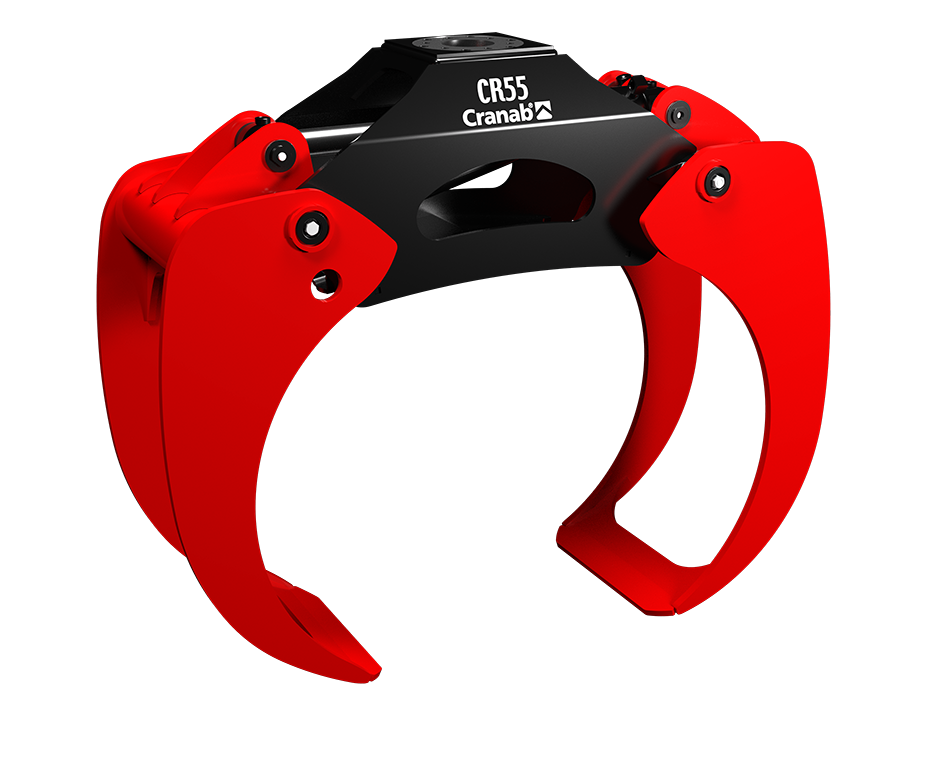

CR55
Max. working pressure
25 MPa
Weight
410 Kg
Dimensions
Area - tip to tip
0,55 m²
Max. gripping width
2446 mm
Min. gripping diameter
152 mm
Grapple width
539 mm
Height - max. gripping width
975 mm
Height - tip to tip
1247 mm
POWER AT TIP
Max. gripping width
16 kN
Min. gripping width
13,3 kN
Max. load
4000 Kg
Expander pins
Yes
