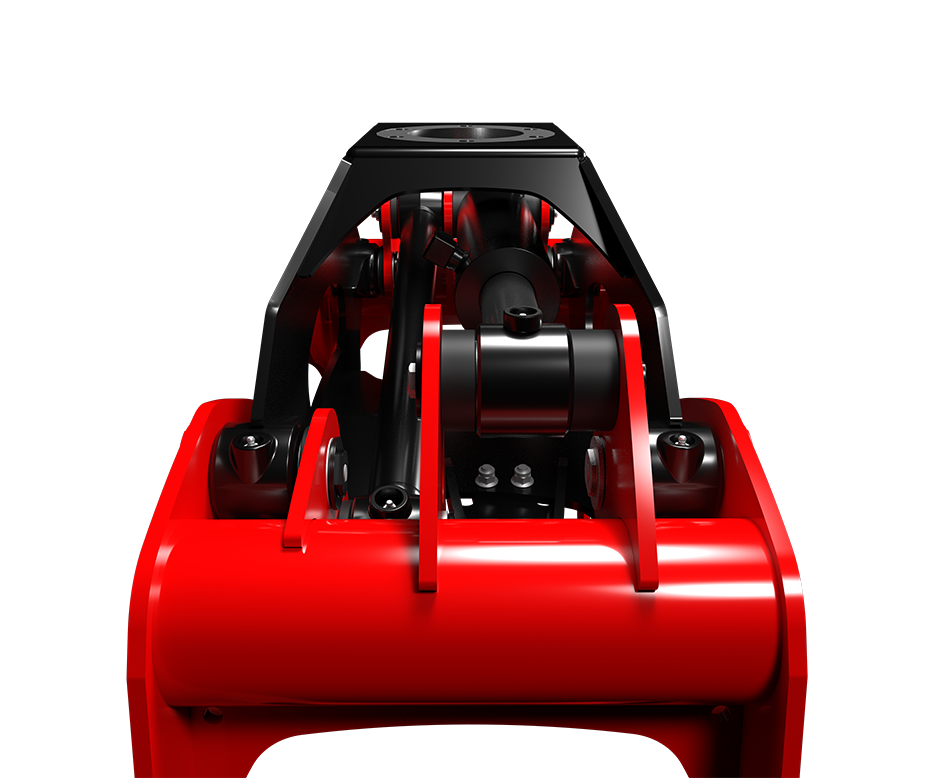

Truck Crane Grapples

Cranab’s CT on-road grapple series is designed and engineered especially for truck crane work. The series consists of three sizes with the model designations, CT35, CT40 and CT50, and complements the entire Cranab grapple programme.

Technical specifications:

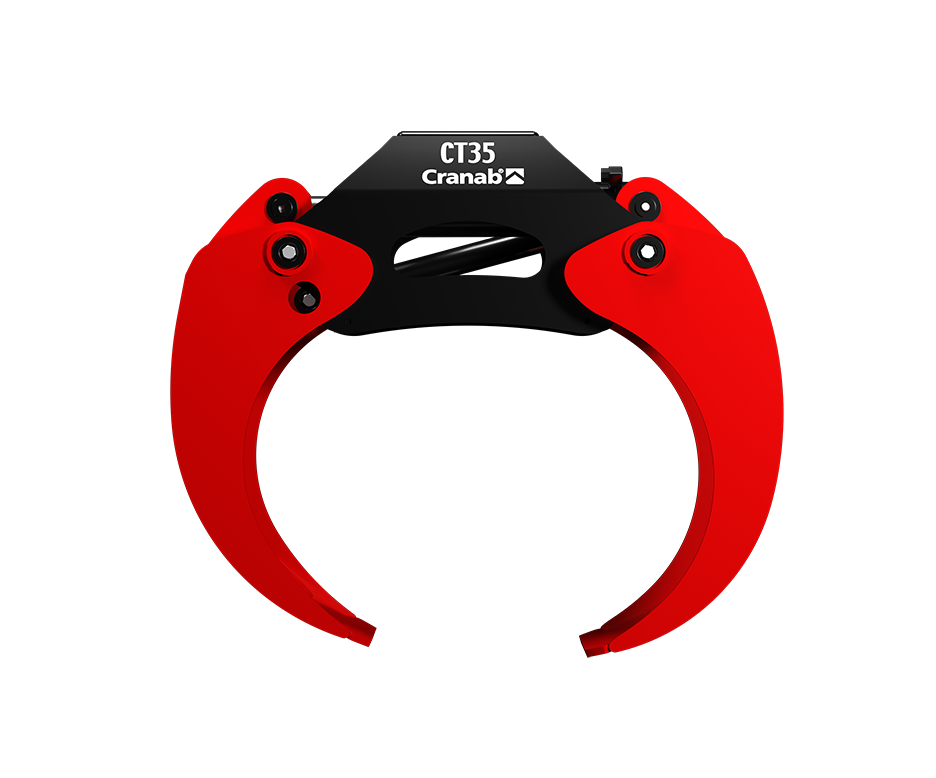

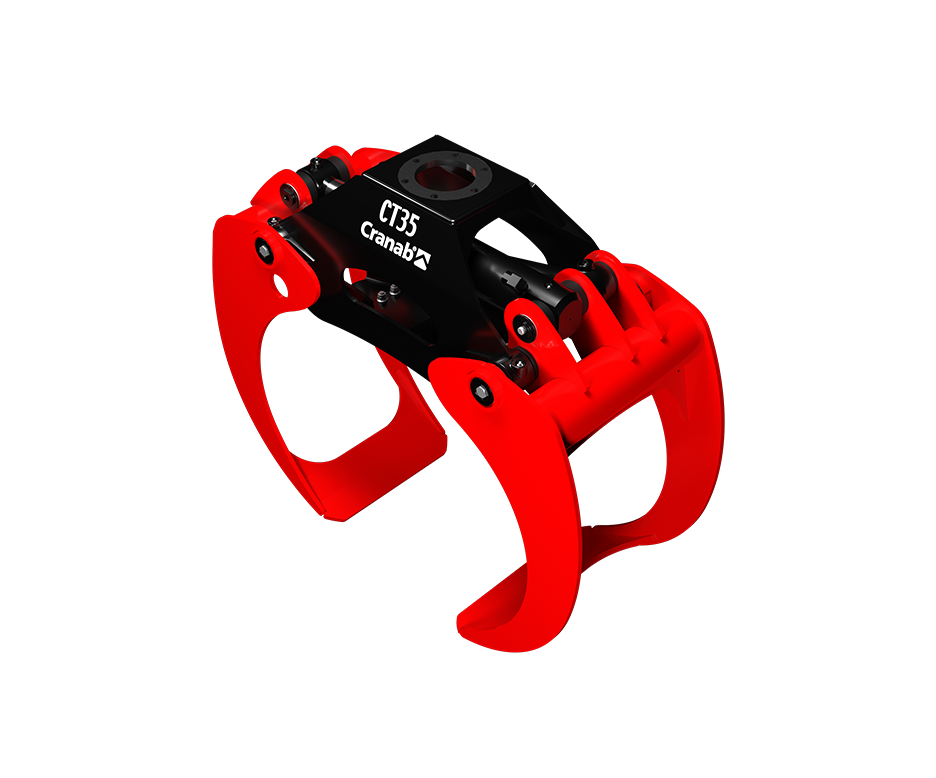

CT35
Max. working pressure
25 MPa
Weight
230 Kg
Dimensions
Area - tip to tip
0,32 m²
Max. gripping width
1818 mm
Min. gripping diameter
130 mm
Grapple width
499 mm
Height - max. gripping width
804 mm
Height - tip to tip
977 mm
POWER AT TIP
Max. gripping width
16,6 kN
Min. gripping width
18,5 kN
Max. load
4000 Kg
Expander pins
Yes

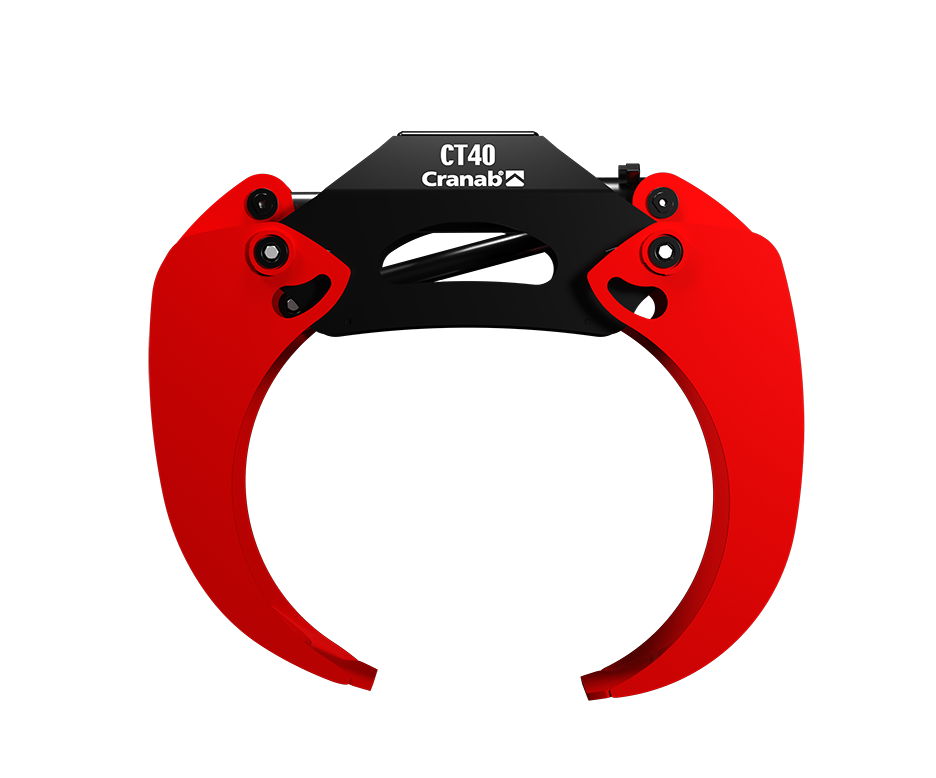

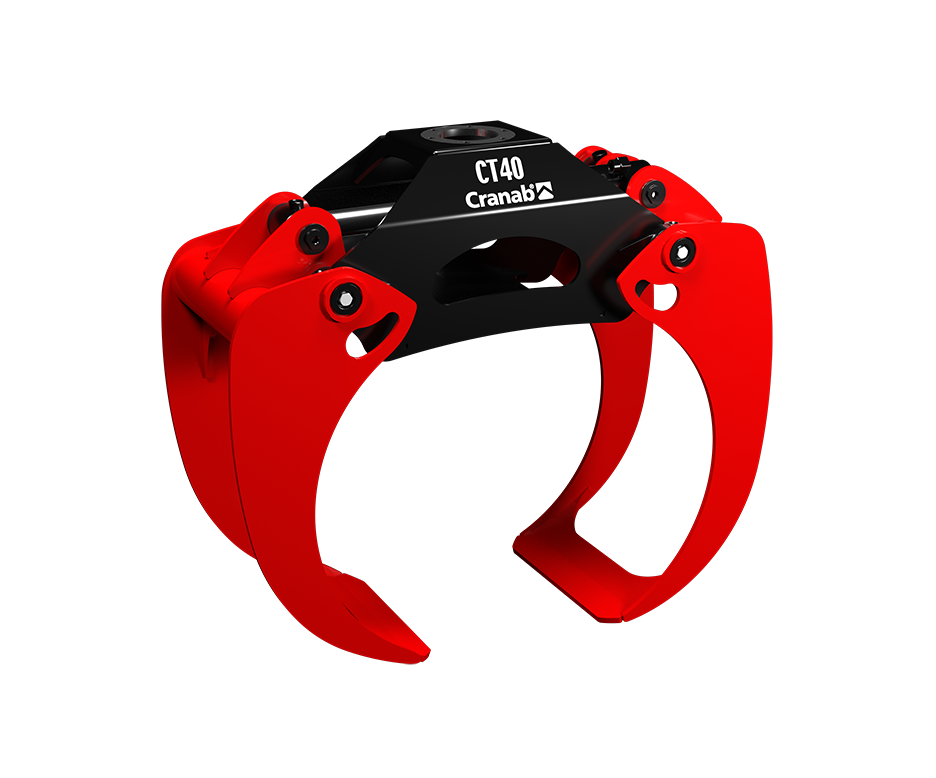

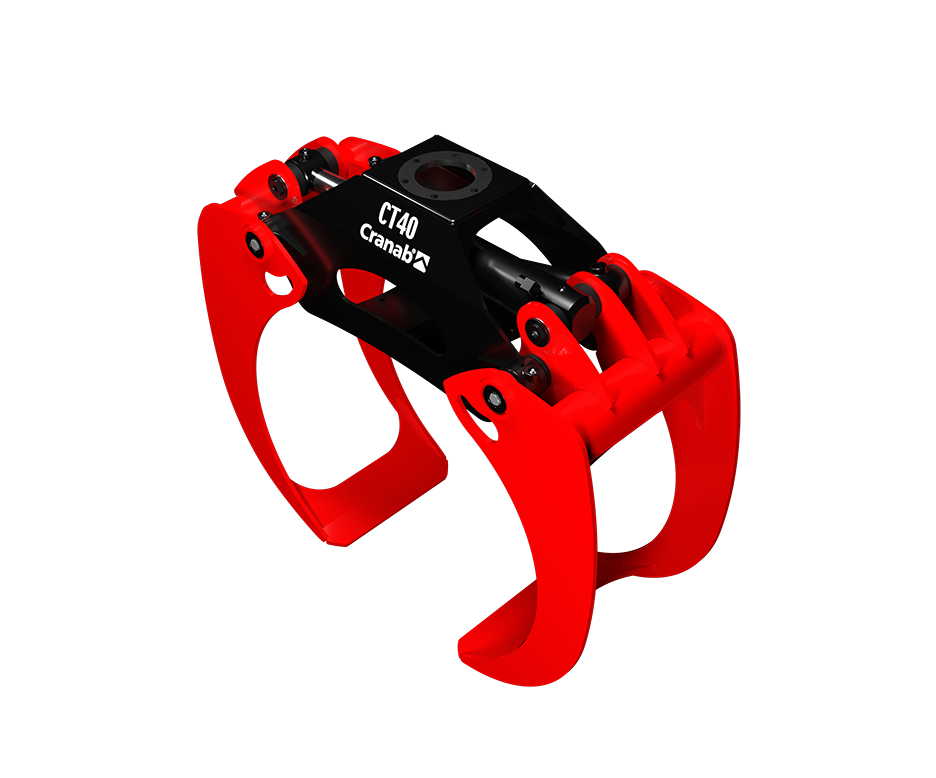

CT40
Max. working pressure
25 MPa
Weight
250 Kg
Dimensions
Area - tip to tip
0,40 m²
Max. gripping width
1978 mm
Min. gripping diameter
129 mm
Grapple width
499 mm
Height - max. gripping width
885 mm
Height - tip to tip
1065 mm
POWER AT TIP
Max. gripping width
16,2 kN
Min. gripping width
18,2 kN
Max. load
4000 Kg
Expander pins
Yes

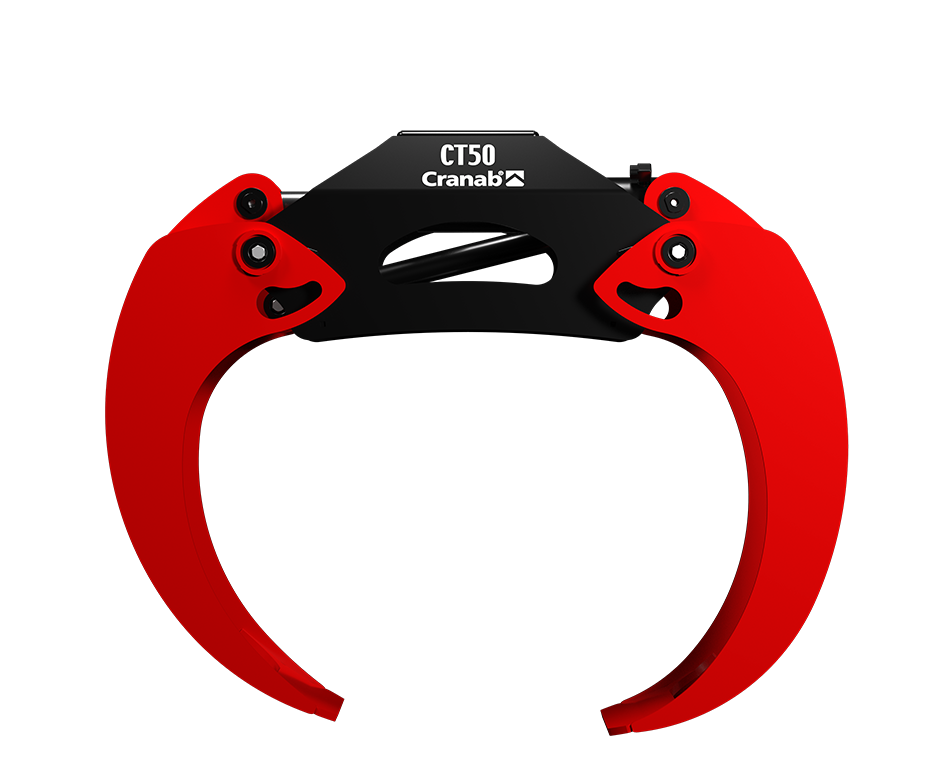

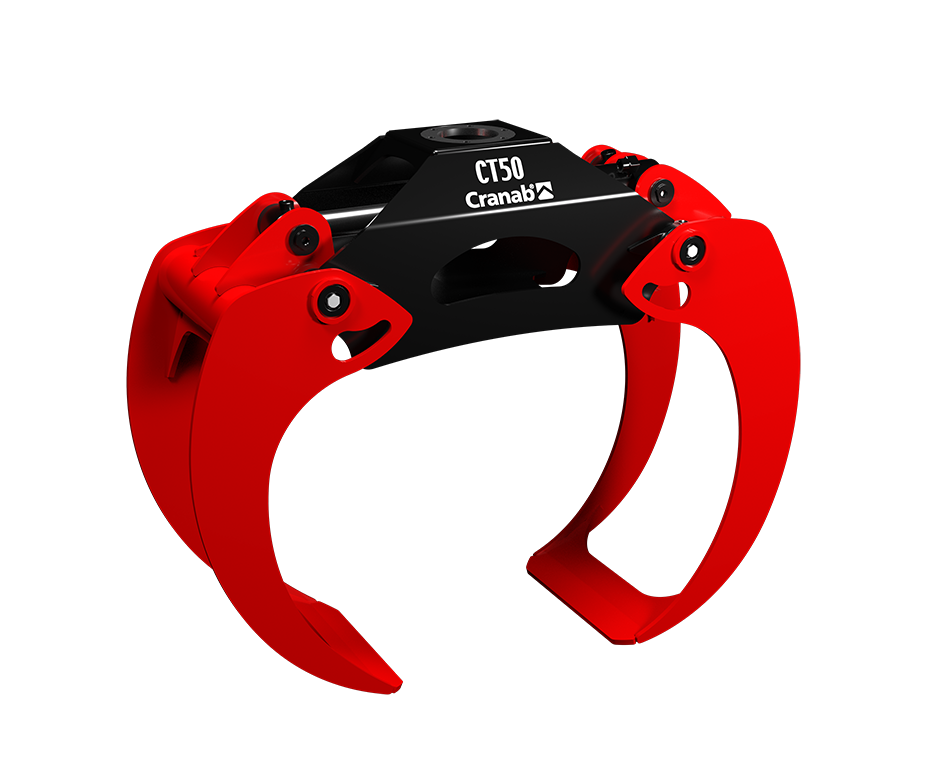

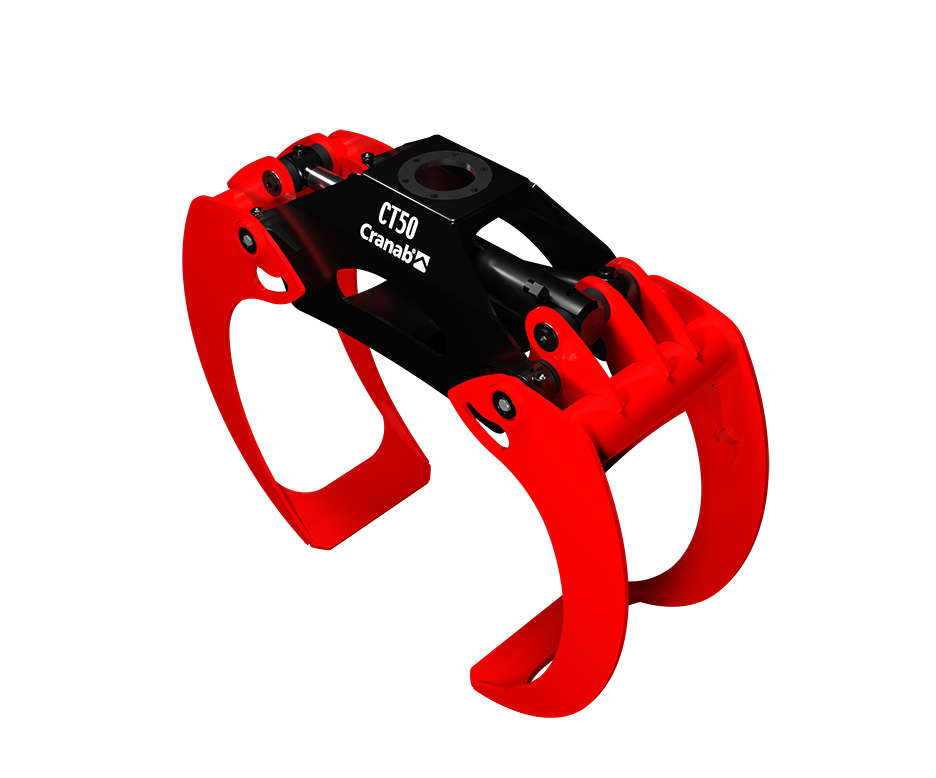

CT50
Max. working pressure
25 MPa
Weight
265 Kg
Dimensions
Area - tip to tip
0,50 m²
Max. gripping width
2079 mm
Min. gripping diameter
170 mm
Grapple width
499 mm
Height - max. gripping width
957 mm
Height - tip to tip
1123 mm
POWER AT TIP
Max. gripping width
15,4 kN
Min. gripping width
17 kN
Max. load
4000 Kg
Expander pins
Yes
