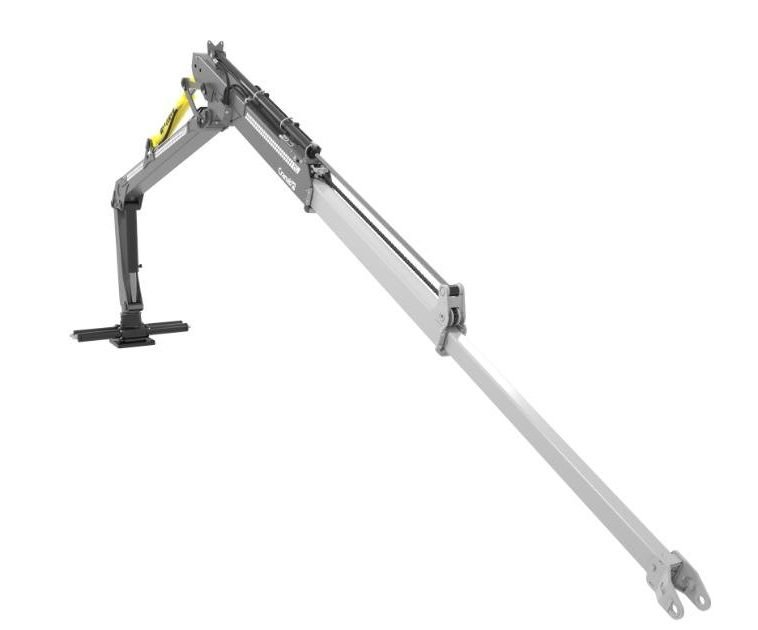

FC5

The FC series brings precision and dependability to forestry machines. Low weight and a compact construction were highly-prioritised factors during the development phase. Creating a complete and well-planned driving experience, with efficiency at every step, every day. It has fingertip sensitivity right the way out to the log, giving you the right speed and fluidity of motion.

A compact and versatile crane in the same size class as our trusted FC45 in single or double telescope version. The FC5 is based on our latest crane technology, class-leading hydraulics, proven geometries and modern design solutions.

Technical specifications:

FC5 - Version 1
Telescopic version
1
Lifting force at max. reach
5,5 kN
Boom extension
1,7 m
Gross slewing torque
13,0 kNm
Angle of rotation
380°
Working pressure
21,5 MPa
Recommended flow
40 - 80 l/min
Weight with lowest pillar elevation
735 kg
Weight with lowest pillar elevation
735 kg
FC5 - Version 2
Telescopic version
2
Lifting force at max. reach
3,5 kN
Boom extension
3,2 m
Gross slewing torque
13,0 kNm
Angle of rotation
380°
Working pressure
21,5 MPa
Recommended flow
40 - 80 l/min
Weight with lowest pillar elevation
800 kg
Weight with lowest pillar elevation
800 kg
