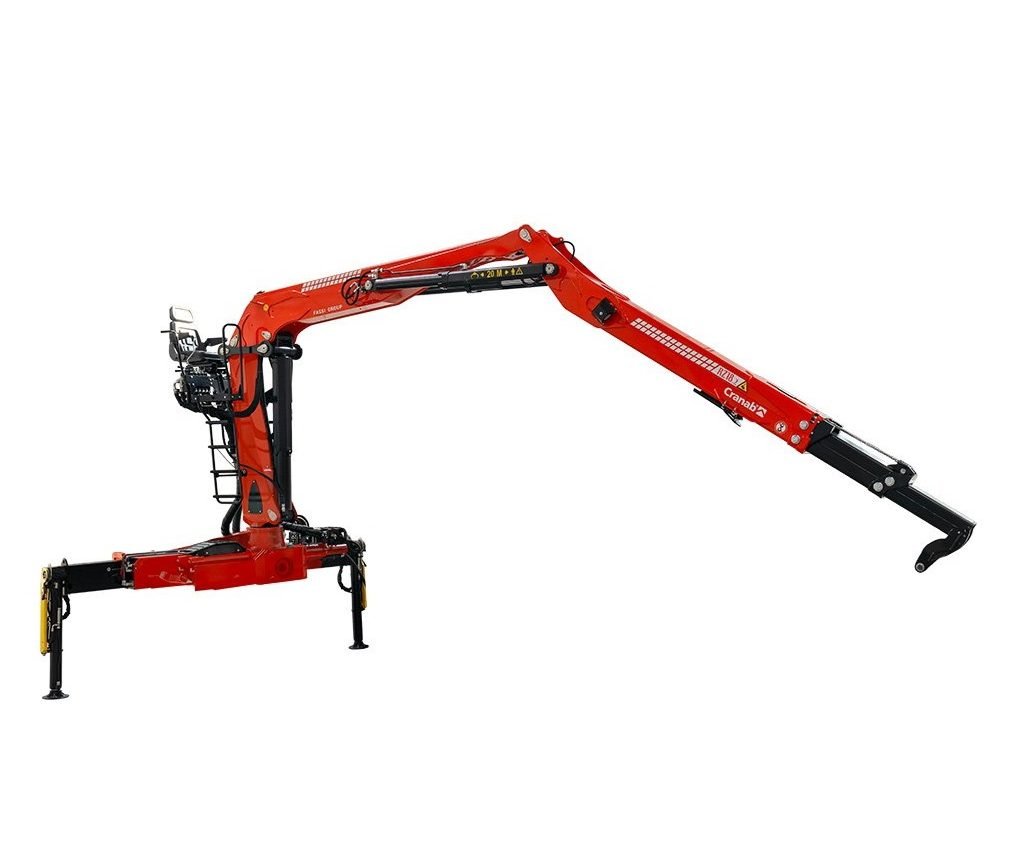

Truck Crane RZ18/20/22XP

With Cranab’s RZ cranes, every operator quickly becomes productive right from the start.

Our most robust and muscular Z-cranes, designed to handle the toughest tasks and the heaviest lifts. Equally as efficient and fast as the smaller cranes, and with the same good qualities, from 8.3 to 10.2 metres and working pressure between 26 and 31.5 MPa.

Technical specifications:

RZ18.1
Telescopic version
1
Standard reach
8,3 m
Lifting capacity
182,00 kNm
Hydraulic extension
1,85 m
Angle rotation
425°
Rotation torque
29,3 kNm
Working pressure
26 MPa
Pump capacity
120 - 160 l/min
Crane weight
2910 kg
RZ18.2
Telescopic version
2
Standard reach
10,2 m
Lifting capacity
171,00 kNm
Hydraulic extension
3,7 m
Angle rotation
425°
Rotation torque
29,3 kNm
Working pressure
26 MPa
Pump capacity
120 - 160 l/min
Crane weight
3000 kg
RZ18R.2
Telescopic version
2
Standard reach
8,3 m
Lifting capacity
172,00 kNm
Hydraulic extension
1,85 m
Angle rotation
425°
Rotation torque
29,3 kNm
Working pressure
26 MPa
Pump capacity
120 - 160 l/min
Crane weight
2850 kg
RZ18TR.2
Telescopic version
2
Standard reach
9,5 m
Lifting capacity
162 kNm
Hydraulic extension
4,16 m
Angle rotation
425°
Rotation torque
29,3 kNm
Working pressure
28 MPa
Pump capacity
120 - 160 l/min
Crane weight
3000 kg
RZ20.1
Telescopic version
1
Standard reach
8,3 m
Lifting capacity
196 kNm
Hydraulic extension
1,85 m
Angle rotation
425°
Rotation torque
29,3 kNm
Working pressure
28,5 MPa
Pump capacity
120 - 160 l/min
Crane weight
2910 kg
RZ20.2
Telescopic version
2
Standard reach
10,2 m
Lifting capacity
191 kNm
Hydraulic extension
3,7 m
Angle rotation
425°
Rotation torque
29,3 kNm
Working pressure
28,5 MPa
Pump capacity
120 - 160 l/min
Crane weight
3000 kg
RZ22XP.1
Telescopic version
1
Standard reach
8,3 m
Lifting capacity
216 kNm
Hydraulic extension
1,85 m
Angle rotation
425°
Rotation torque
29,3 kNm
Working pressure
31,5 MPa
Pump capacity
120 - 160 l/min
Crane weight
2910 kg
RZ22XP.2
Telescopic version
2
Standard reach
10,2 m
Lifting capacity
212 kNm
Hydraulic extension
3,7 m
Angle rotation
425°
Rotation torque
29,3 kNm
Working pressure
31,5 MPa
Pump capacity
120 - 160 l/min
Crane weight
3000 kg
