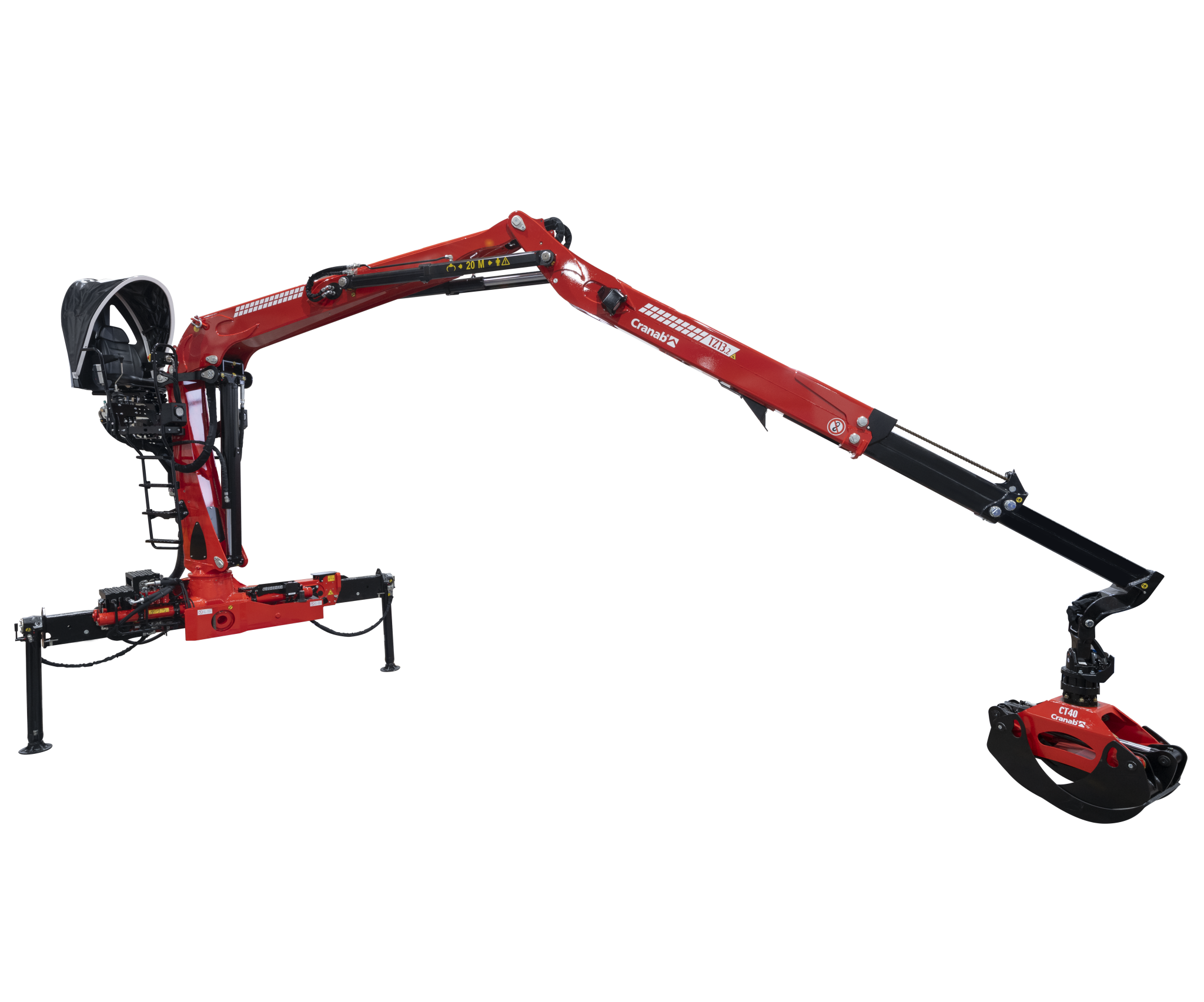

TZ13 scaled aspect ratio 952 792

TZ13/15/16XP

The cranes have been specially produced for trucks and consist of modern, tried-and-tested technologies and world-class hydraulics. In our development work we have focused on the operator, contractors and the environment. We have put great emphasis into the industry-leading key properties of performance, high productivity and sustainability.

With Cranab’s Z-crane you will achieve high productivity from the outset. The crane extends quickly and enables efficient production using extensively tested hydraulics and leading operating properties. Thanks to its compact design and the Z-crane’s unique parking position the operator is able to take a maximum load every time.

TZ13, TZ15, and TZ16XP meet the needs of most users.

Technical specifications:

TZ13.1
Telescopic version
1
Standard reach
8,5 m
Lifting capacity
118 kNm
Hydraulic extension
2,05 m
Angle rotation
425°
Rotation torque
25 kNm
Working pressure
26 MPa
Pump capacity
120 - 160 l/min
Crane weight
2380 kg
TZ13.2
Telescopic version
2
Standard reach
10,5 m
Lifting capacity
112 kNm
Hydraulic extension
4,0 m
Angle rotation
425°
Rotation torque
25 kNm
Working pressure
26 MPa
Pump capacity
120 - 160 l/min
Crane weight
2460 kg
TZ15.1
Telescopic version
1
Standard reach
8,5 m
Lifting capacity
132 kNm
Hydraulic extension
2,05 m
Angle rotation
425°
Rotation torque
25 kNm
Working pressure
28,5 MPa
Pump capacity
120 - 160 l/min
Crane weight
2380 kg
TZ15.2
Telescopic version
2
Standard reach
10,5 m
Lifting capacity
128 kNm
Hydraulic extension
4,00 m
Angle rotation
425°
Rotation torque
25 kNm
Working pressure
28,5 MPa
Pump capacity
120 - 160 l/min
Crane weight
2460 kg
TZ16XP.1
Telescopic version
1
Standard reach
8,5 m
Lifting capacity
148 kNm
Hydraulic extension
2,05 m
Angle rotation
425°
Rotation torque
25 kNm
Working pressure
31,5 MPa
Pump capacity
120 - 160 l/min
Crane weight
2380 kg
TZ16XP.2
Telescopic version
2
Standard reach
10,5 m
Lifting capacity
144 kNm
Hydraulic extension
4,00 m
Angle rotation
425°
Rotation torque
25 kNm
Working pressure
31,5 MPa
Pump capacity
120 - 160 l/min
Crane weight
2460 kg
