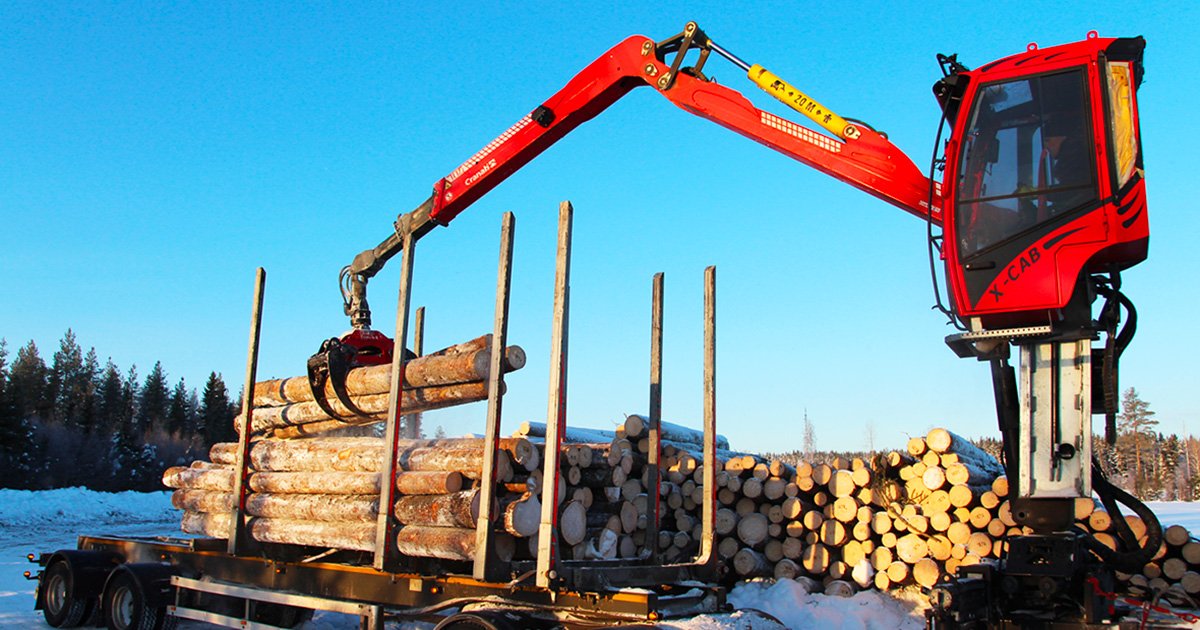

Cranab truck crane TL12

TL12

The cranes have been specially produced for trucks and consist of modern, tried-and-tested technologies and world-class hydraulics. In our development work we have focused on the operator, contractors and the environment. We have put great emphasis into the industry-leading key qualities of performance, high productivity and sustainability.

Cranab's L-formed truck crane always puts you one step ahead: It is powerful, versatile and flexible, service-friendly and safe. The L-crane always comes fitted with a torque linkage, which makes it extra powerful and dependable, especially in heavy lifting scenarios.

Download PDF





Available version:

Max. standard reach 8,3 - 10 m
Max. lifting capacity 106,4 - 115 kNm
Max. hydraulic extension 3,1 - 3,7 m

Telescopic version1
Standard reach8,3 m
Lifting capacity115,00 kNm
Hydraulic extension1,57 m
Angle rotation425°
Rotation torque29,3 kNm
Working pressure26 Mpa
Pump capacity120 - 160 l/min
Crane weight2415 kg

Telescopic version2
Standard reach10,0 m
Lifting capacity106,4 kNm
Hydraulic extension3,1 m
Angle rotation425°
Rotation torque29,3 kNm
Working pressure26 Mpa
Pump capacity120 - 160 l/min
Crane weight2535 kg
