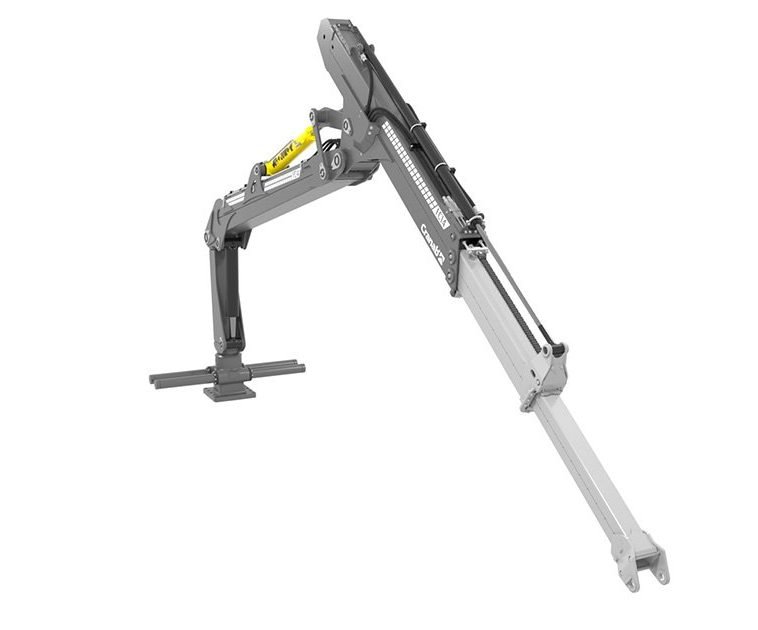

FC14

The FC series brings precision and dependability to forestry machines. Low weight and a compact construction were highly-prioritised factors during the development phase. Creating a complete and well-planned driving experience, with efficiency at every step, every day. It has fingertip sensitivity right the way out to the log, giving you the right speed and fluidity of motion.

It only takes a matter of seconds for the FC14 to leave a memorable impression. Almost immediately, you’ll see it is made with great care, with excellent running characteristics and a user-friendly operator’s station begging to be put to good use.
The crane lifts heavier loads higher and faster and with greater precision than ever before.

Technical specifications:

FC14 - Version 1
Teleskopversion
1
Teleskopversion
1
Max. reach
8,5 m
Lifting torque, gross
145 kNm
Lifting force at max. reach
10,7 kN
Boom extension
2,0 m
Gross slewing torque
42,5 kNm
Angle of rotation
370°
Working pressure
26,0 MPa
Recommended flow
160 - 280 l/min
FC14 - Version 2
Teleskopversion
2
Teleskopversion
2
Max. reach
10,0 m
Lifting torque, gross
145 kNm
Lifting force at max. reach
8,1 kN
Boom extension
4,1 m
Gross slewing torque
42,5 kNm
Angle of rotation
370°
Working pressure
26,0 MPa
Recommended flow
160 - 280 l/min
