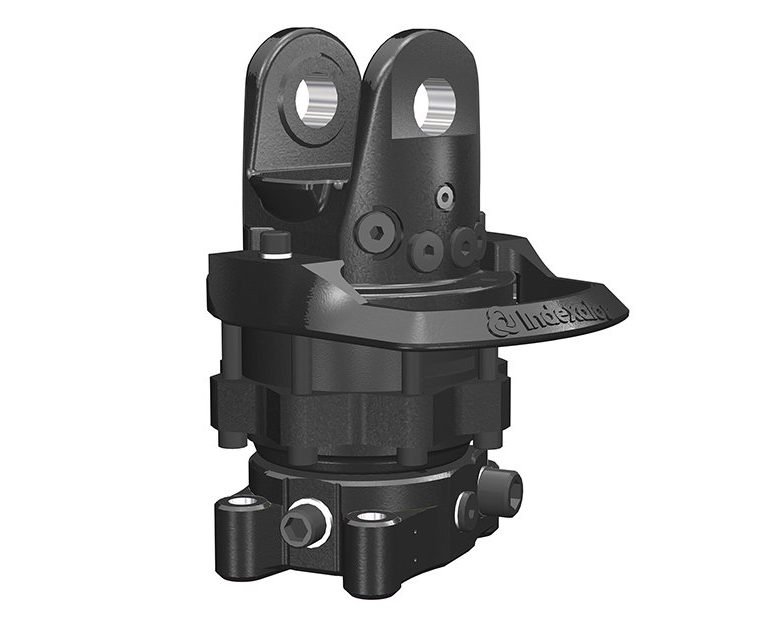

G Rotators

Purpose-built grapple rotators for MPB swing dampers.

Every rotator is tested individually before delivery. All functions are inspected and ensured. They are compact and robust – the materials and components are carefully selected.

The rotators are equipped with heavy duty bearings and are hydraulically balanced, which gives them long intervals between required servicing and long lifetimes.

Technical specifications:

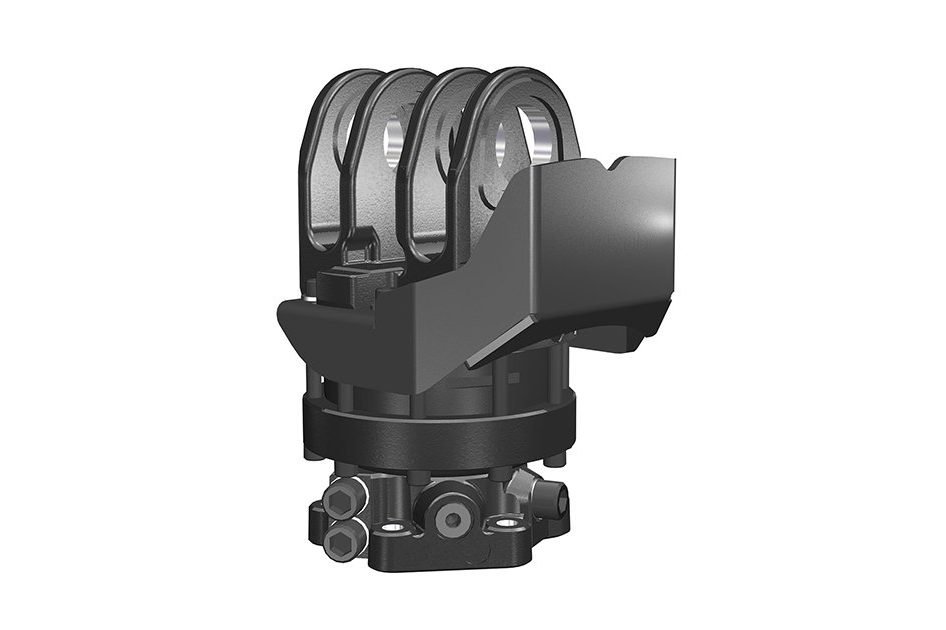

G 101 Y
g 101 y f1 aspect ratio 600 400
Weight
52 Kg
Rotation
360°
Max axial load, static
60 kN
Max axial load, dynamic
25 kN
Torque at 25 Mpa
1900 Nm
Rotation max. oilflow
25 l/min
Rotation max. working pressure
25 MPa
Max. working pressure, grapple open
25 MPa
Max. working pressure, grapple closed
25 MPa

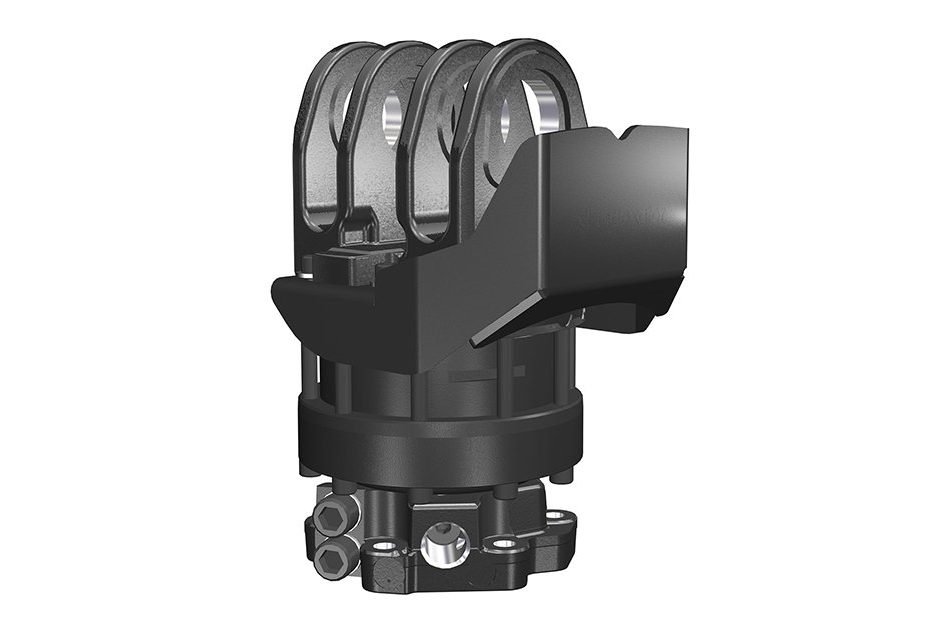

G 121 Y
g 121 y f1 aspect ratio 600 400
Weight
57,2 Kg
Rotation
360°
Max axial load, static
100 kN
Max axial load, dynamic
50 kN
Torque at 25 Mpa
2200 Nm
Rotation max. oilflow
25 l/min
Rotation max. working pressure
25 MPa
Max. working pressure, grapple open
25 MPa
Max. working pressure, grapple closed
25 MPa
G 141 Y
g 141 y f1 aspect ratio 600 400
Weight
56,7 Kg
Rotation
360°
Max axial load, static
100 kN
Max axial load, dynamic
50 kN
Torque at 25 Mpa
3300 Nm
Rotation max. oilflow
35 l/min
Rotation max. working pressure
25 MPa
Max. working pressure, grapple open
25 MPa
Max. working pressure, grapple closed
25 MPa

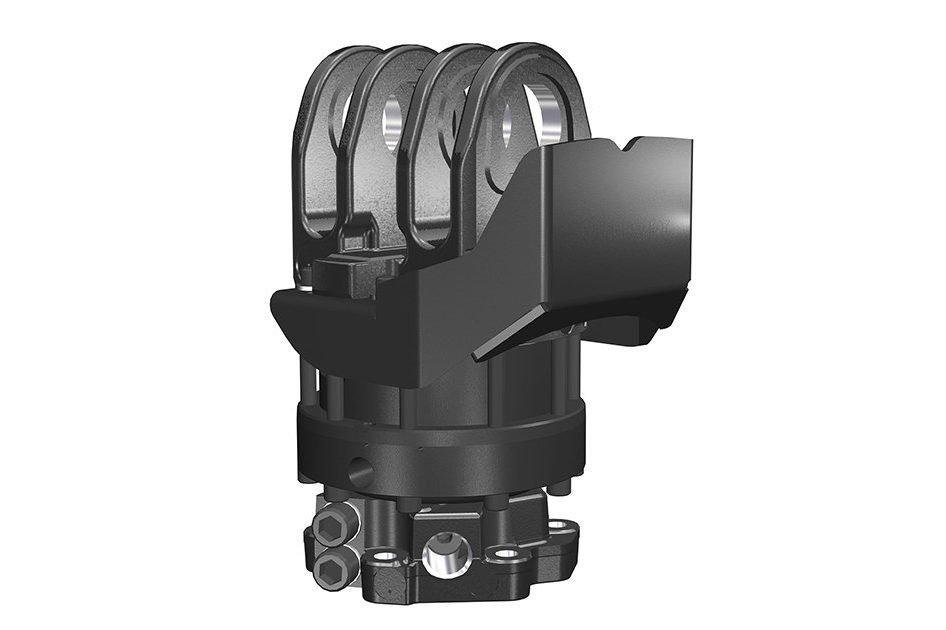

G 171 Y
g 141 y.1 f1 aspect ratio 600 400
Weight
60,7 Kg
Rotation
360°
Max axial load, static
160 kN
Max axial load, dynamic
50 kN
Torque at 25 Mpa
3300 Nm
Rotation max. oilflow
35 l/min
Rotation max. working pressure
25 MPa
Max. working pressure, grapple open
25 MPa
Max. working pressure, grapple closed
25 MPa
